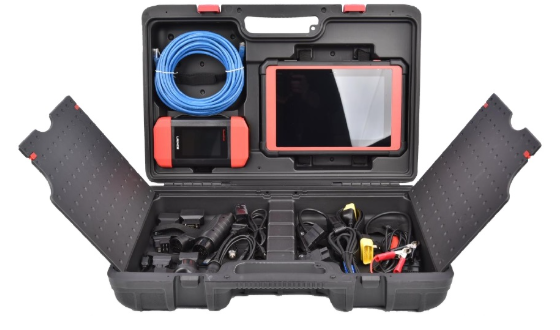

LAUNCH X-431 PAD5

₹ 210000.00

LAUNCH X-431 PAD5
(3 year update & 1 year warrenty)

The X-431 PAD5 LINK is a high-end professional diagnostic tool with an optional charging base newly developed based on the Android 7.1 open system. It comes with ADAS calibration functions, 41 service functions, TPMS services, and other extended modules functions. The IP65 case is waterproof and dustproof to best protect the scan tool for use longer. All these unique features will offer you a luxury experience of vehicle diagnosis.

Quantity

Whatsapp
  • Description
  • Diagnostics
  • Immoblizers
  • Packing List
  • Parameters
  • Special Function
  • Video

  • Full vehicle system coverage for over 110 brands in the world, which is continually updated
  • Full-function scan tool for both cars and trucks
  • Support J2534, DolP, CAN FD and other protocols with Smartlink VCI
  • Automatically identify VIN upon connection to the vehicle for intelligent diagnosis
  • Remote diagnosis allowing you to work on a vehicle from your tool without being on-site
  • Read all DTC types for full system, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic functions
  • Guided function for Volkswagen and Audi
  • Advanced coding and programming function
  • 41 special functions available
  • ADAS calibration function is optional
  • Compatible with 5 extended module: Oscilloscope, sensor, battery test, endoscope, WiFi printer
  • One-Click Upgrade and silent install for software
  • Diagnostic records and reports can be stored in the cloud without any concern of data missing
  • Integrated database with comprehensive vehicle services and repair information
  • The latest 2.4 & 5GHz Dual Wi-Fi with high transfer speed, strong anti-interference and long-distant diagnosis ability
  • IP65 case with exceptional damage resistance to the water and dust for workshop use
  • Docking & charging station included with QC3.0 Quick Charge technology
  • Support USB Type C & Type A

  • Full system diagnostics (Engine, ABS, SRS, Transmission, BCM, etc.)
  • Read & clear fault codes (DTCs)
  • Live data stream analysis
  • ECU information reading
  • Topology mapping (module communication view)
  • Bi-directional control (active tests)
  • Multi-brand global coverage
  • IMMO key programming (with X-PROG / add-on module)
  • All Keys Lost (AKL) support (vehicle dependent)
  • ECU & IMMO synchronization
  • Transponder programming support
  • Smart key programming (with extension modules)
Item No.
Product / Accessory
1X-431 PAD5 Tablet
2Smartlink C VCI
3OBDII Cable
4USB Cable
5Power Adapter
6Charging Dock (optional / kit based)
7Carrying Case
8User Manual



  X-431 PAD5 LINK

  OS

  Android 11

  Display

  10.1", 1920*1200 sunlight readable screen, gorilla glass

  CPU

  2.0GHz, Octa-core

  Memory

  4GB

  Storage

  256GB

  Battery

  9360 mAh

  Camera

  Rear 13MP, Front 8MP

  VCI Connection

  2.4GHz/5GHz dual WiFi

  Dimensions

  320*211*46 mm

  Interface

  TYPE A*1 & TYPE C*1




  SMARTLINK C V2.0

  Display

  3.95'',  320*480

  Memory

  256M

  Storage

  8GB

  Remote Communication

  Local Diagnosis: WiFi/BT/USB

  SmartLink Remote Diagnosis: WiFi/Ethernet

  Working Voltage

  9V DC ~ 36V DC

  Dimensions

  200*110*47 mm


  • Brake Reset
  • Oil Maintenance Reset
  • Steering Angle Reset
  • Battery Matching
  • ABS Bleeding
  • Electronic Throttle Relearn
  • TPMS Reset Database
  • DPF Regeneration
  • AC System Relearn/Initialization
  • Adaptive Front Lighting
  • Adblue Reset
  • Air/Fuel Reset
  • Gear Learning
  • EGR Adaption
  • Engine Power Balance Monitoring
  • Stop/Start Reset
  • Gearbox Relearn
  • High-Voltage Battery Diagnostics
  • IMMO Program
  • Immobilizer Reset
  • Injector Coding
  • Intelligent Cruise Control System
  • Language Change
  • Motor Angle Calibration
  • Air Level Calibration
  • Nox Sensor Reset
  • Coolant Bleed
  • Seat Occupancy Calibration
  • Gas Particular Filter Regeneration
  • Sunroof Reset
  • Tire Reset
  • Transport Mode
  • Windows Calibration
  • ECU Reset
  • Rainfall Light Sensor
  • Turbocharging Matching
  • FRM Reset
  • Gateway Module Data Calibration
  • Clutch Matching
  • ODO Check
  • RESETMSVIN
