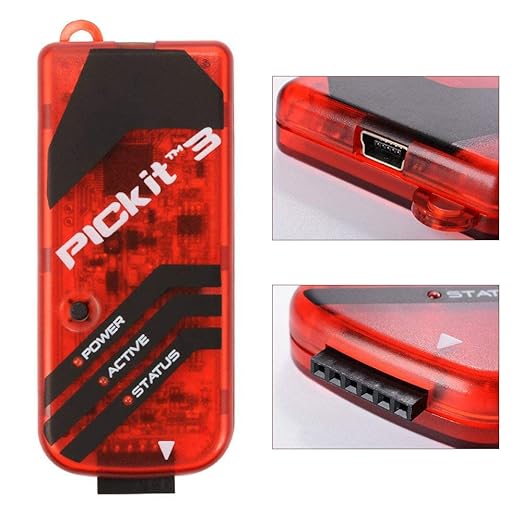

PickIt 3 (PICkit3) is an in-circuit debugger and programmer developed for Microchip PIC microcontrollers. It connects to a computer via USB and allows users to program, debug, and test embedded systems in real time using MPLAB IDE software.

This tool is commonly used in automotive applications like:

Digital meter repair (Minda meter, speedometer IC flashing)
Inverter PCB programming
ECU/cluster chip flashing (basic level)

It supports in-circuit serial programming (ICSP), meaning you can program chips directly on the board without removing them.

Read / Write program memory
Read / Write EEPROM data
Erase microcontroller memory
Verify programmed data
Real-time debugging with breakpoints
Monitor execution of embedded program

Useful for:

Faulty meter IC diagnosis
Embedded board testing
Firmware debugging

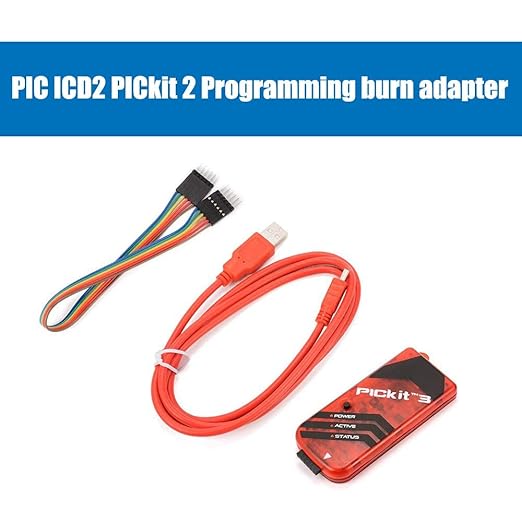

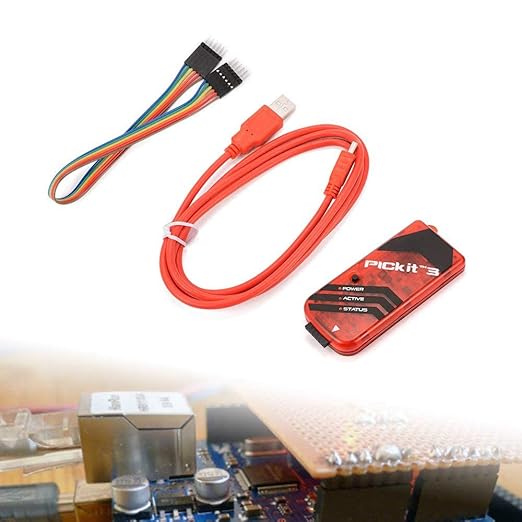

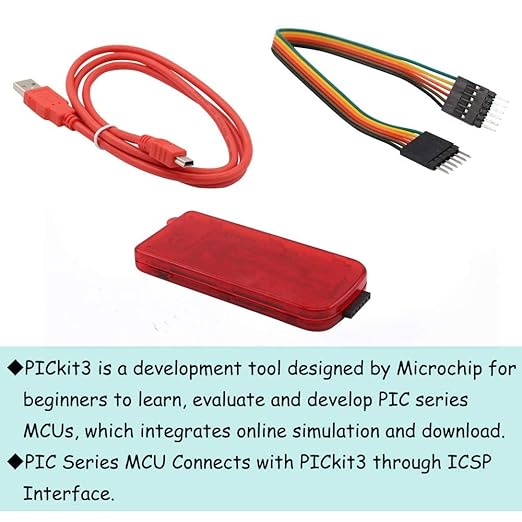

PICkit 3 Programmer Device

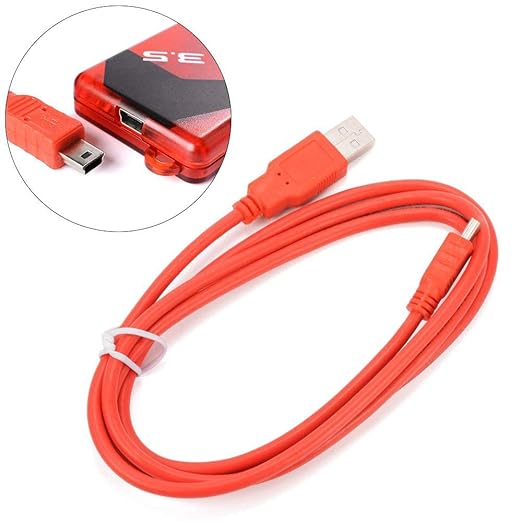

USB Cable
ICSP Cable / Connector (depends on kit)
Adapter board (optional in some kits)
Software (Download via MPLAB)

Interface: USB 2.0 (Full Speed 12 Mbps)
Supported Devices: PIC / dsPIC microcontrollers
Voltage Range: 2.0V – 6.0V
Connection Type: ICSP (RJ11 / pin header)
Software: MPLAB / MPLAB X IDE
Debugging: Real-time debugging supported
LED Indicators: Power, Busy, Error
Firmware: Upgradeable via PC

In-Circuit Serial Programming (ICSP)
Real-time debugging & execution
Breakpoint debugging
Peripheral freeze on halt
Programmer-To-Go (offline programming support in some variants)
Memory read/write & verification
Firmware upgrade support

About Us

Contact Info

Product Details

PickIt 3 Minda Meter Programmer

₹ 6000.00
