CRP 880 Pump Tester

₹ 22000.00

The CRP 880 Pump Tester is a heavy-duty, splash lubricated, air-cooled, belt-driven compressor capable of delivering 175 PSIG of compressed air. It is designed for use in various applications where high-pressure air is required. The CRP Series compressors are known for their reliability and efficiency, making them a popular choice for industries that rely on compressed air for various tasks

Quantity

Whatsapp
  • Description
  • Diagnostics
  • Packing List
  • Parameters
  • Special Function

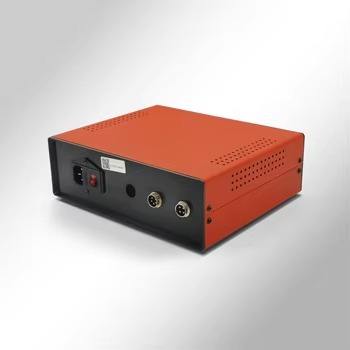

CRP 880 Pump Tester is a professional electronic tool designed to test and drive high-pressure diesel common rail pumps. It works by generating ECU-like control signals that allow the pump to operate outside the vehicle, helping technicians analyze pump performance and faults.


The device supports major pump types such as Bosch CP1, CP2, CP3, Denso HP0/HP3/HP4, and Delphi systems, making it suitable for a wide range of CRDI engines. It allows users to adjust and store drive parameters, enabling testing under different working conditions.


This tool is commonly used in diesel workshops for pump diagnosis, repair verification, and injector system testing setups.

BOSCH (CP1 / CP2 / CP3)
DENSO (HP0 / HP3 / HP4)
DELPHI
SIEMENS

CUMMINS
CRDI SYSTEM (ALL DIESEL COMMON RAIL VEHICLES)

    -> Used in:

  • Passenger vehicles (Hyundai, Toyota, Mahindra, Kia)
  • Commercial vehicles (Tata, Ashok Leyland, Eicher)
  • Heavy-duty engines (Cummins, industrial diesel systems)

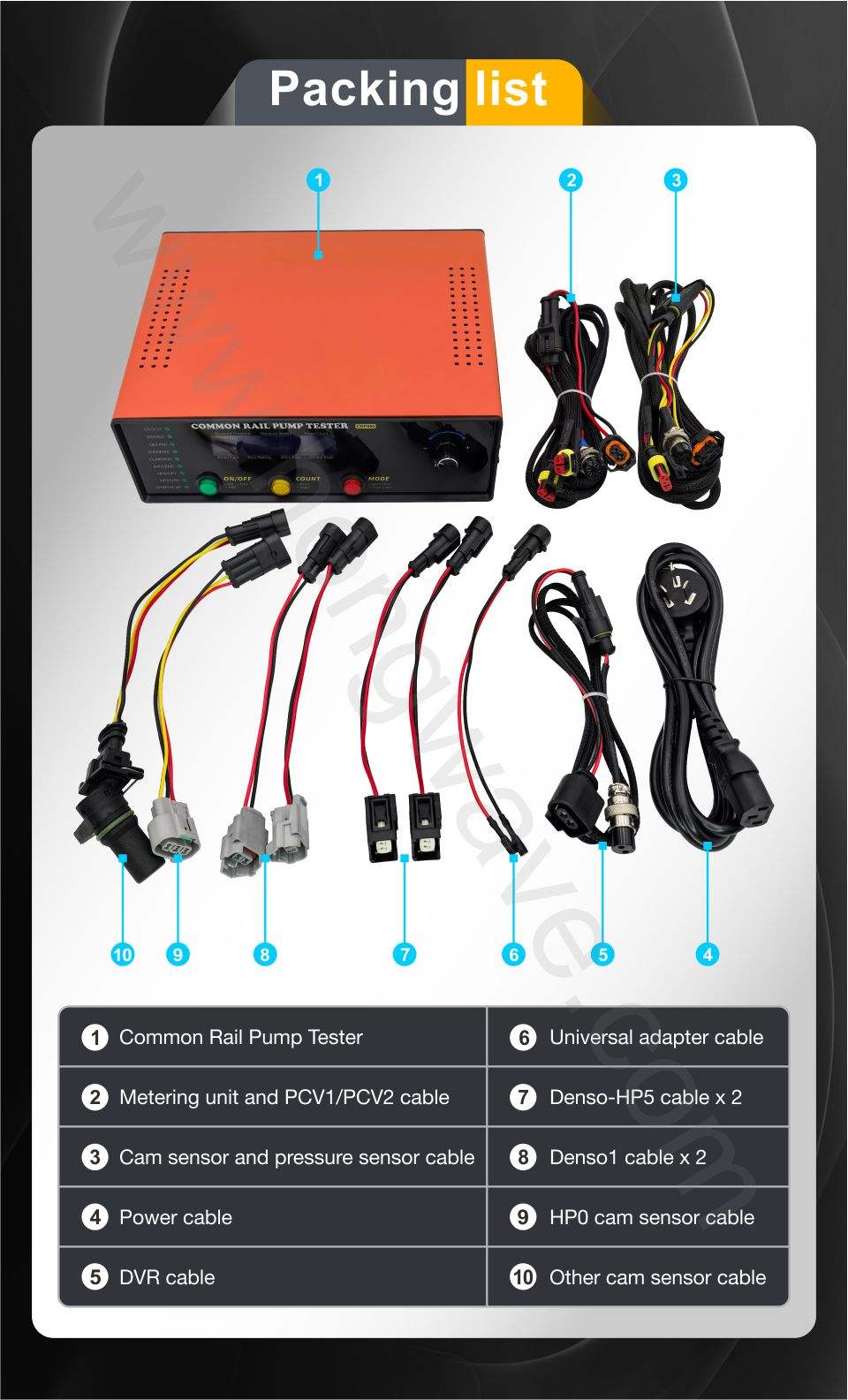

  • CRP 880 Main Unit
  • Power Cable
  • Pump Connection Harness
  • Test Leads / Clips
  • User Manual

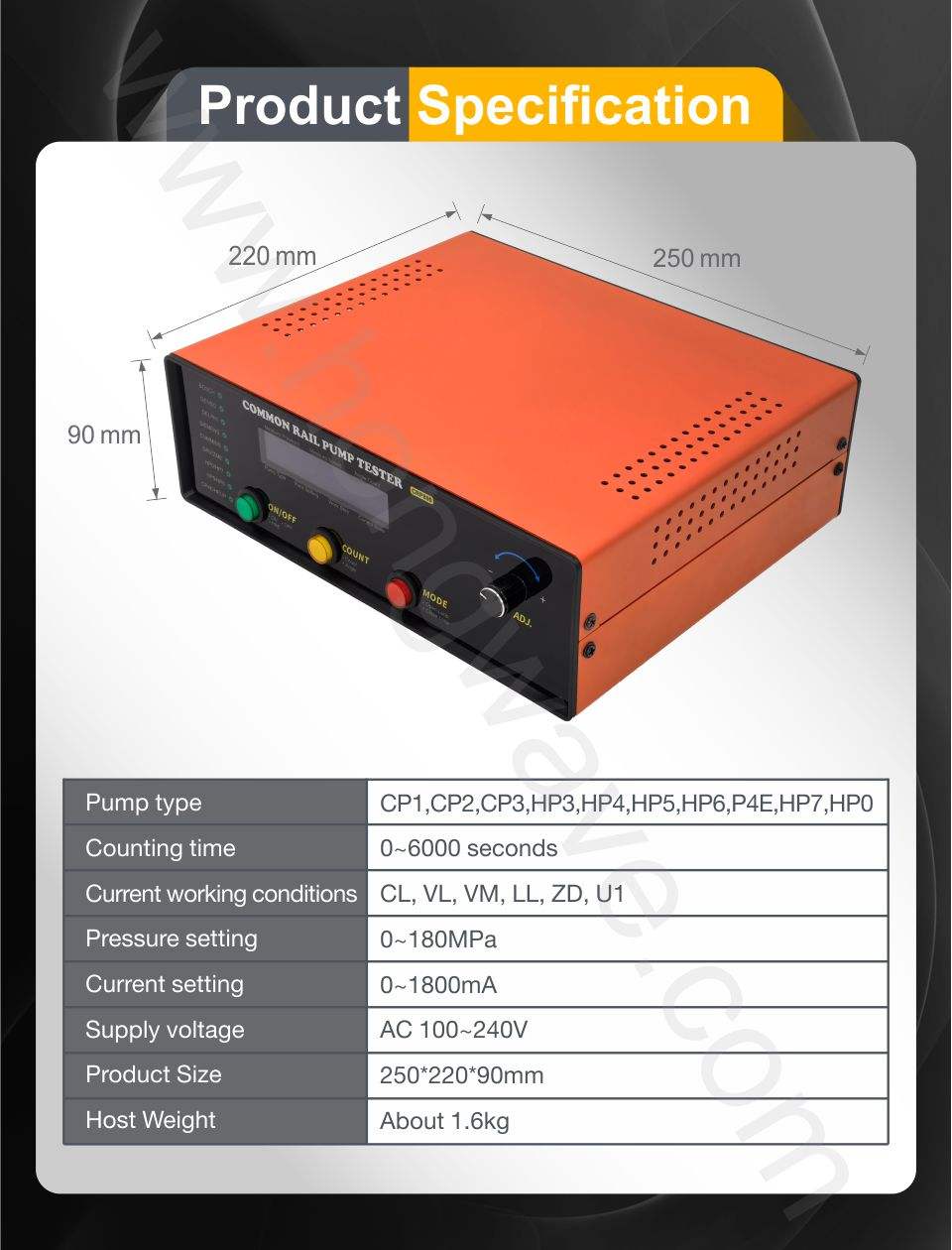

  • Working Voltage: AC 110V – 220V
  • Control Type: Electronic / Microprocessor-based
  • Output Signal: ECU simulation signal
  • Adjustable Parameters: Frequency, pulse width, duty cycle
  • Compatibility: Common rail high-pressure pumps
  • Display: Digital / control panel (varies by model)
  • Operation Mode: Bench / workshop use
  • Memory Function: Parameter storage (preset groups)
  • High-pressure pump driving (ECU signal simulation)
  • Pump performance testing
  • Adjustable signal parameters (custom testing)
  • Fault detection in pump (pressure instability, no output, weak flow)
  • Multi-brand pump compatibility
  • Parameter saving for repeated testing
  • Integration with injector testing setups
